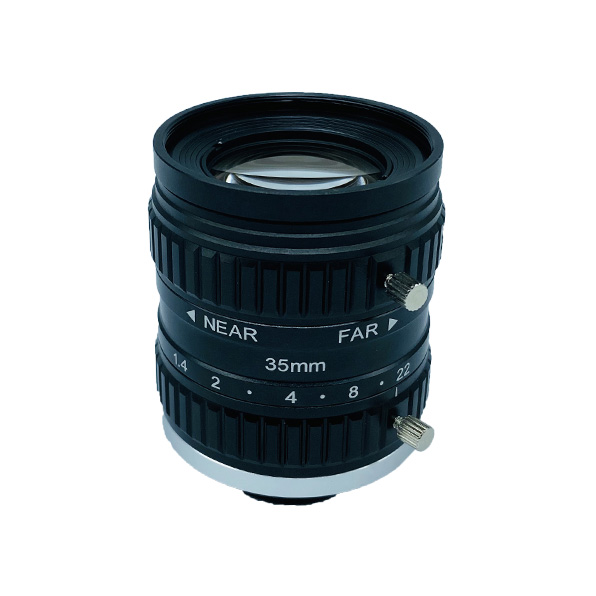

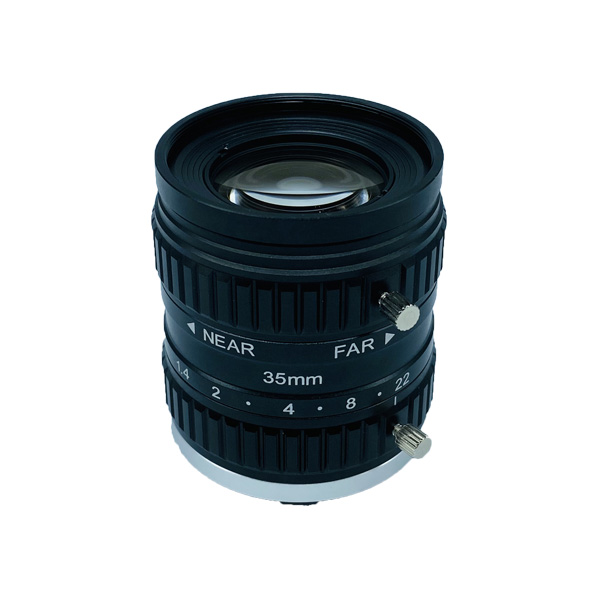

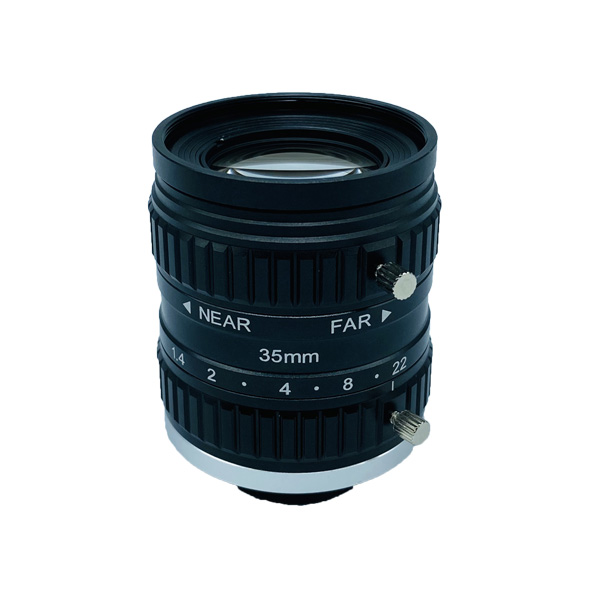

| Model | BBH03016-8M3514 | |
| Sensor Type | 1″ | |
| Resolution | 8M | |
| Focal Length | 35mm | |
| F/NO | F1.4~22 | |
| Optical FOV (D*H*V) | 1″ | D25.7°/H20.7°/V15.6° |
| 2/3″ | D17.8°/H14.3°/V10.7° | |
| TV Distortion | 1″ | -0.27% y=8mm |
| 2/3″ | -0.06% y=5.5mm | |
| Focus Range | 1.0m ~ ∞ | |
| Mechanical BFL(E) | 17.526㎜ | |
| Control Method | Focus | Manual |
| Iris | Manual | |
| Mount | C | |
| Filter Size | M39xP0.5 | |
| Temperature | -10℃~+50℃ | |
